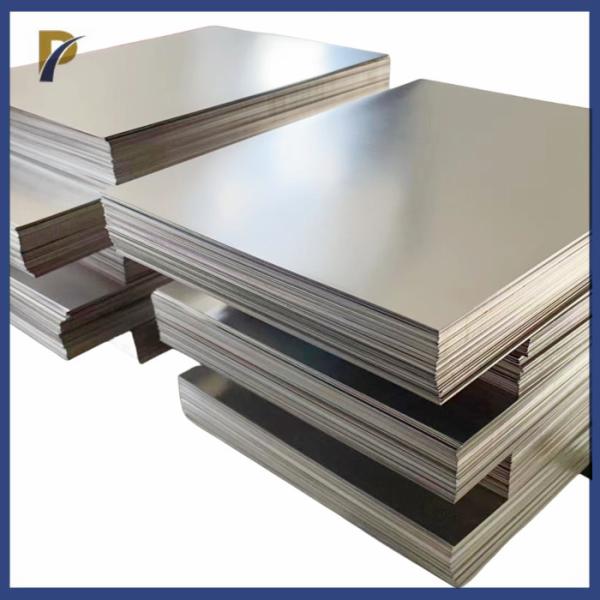

    ASTM B265 2mm 3mm 5mm Gr1 Gr2 Titanium Sheet For Aerospace

    Ask Lasest Price
    Brand Name : PRM
    Model Number : GR1,GR2,GR5,GR7,GR9,GR12
    Certification : ISO9001
    Price : $12~28/kg
    Payment Terms : T/T
    Supply Ability : 50ton/month
    Delivery Time : 5~7days
    • Product Details
    • Company Profile

    ASTM B265 2mm 3mm 5mm Gr1 Gr2 Titanium Sheet For Aerospace

    Titanium sheet grade:


    US brand: GR1, GR2, GR3, GR5, GR7, GR12
    Russian brand: BT1-00, BT1-0, BT1-2, etc.
    Chinese brand: TA0, TA2, TA3, TA5, TA6, TA7, TA9, TA10, TB2, TC1, TC2, TC3, TC4


    Titanium plate specifications:


    Grade
    TA1,TA2,TA3,TC4,GR1,GR2,GR5
    Standard
    GB/T 3621-2007,GB/T 13810-2007ASTM B265,ASTM F136,ASTM F67,
    Specification
    T 0.5-5.0mm x W1000mm x L 2000-3500mmT 6.0- 30mm x W1000-2500mm x L 3000-6000mmT 30- 80mm x W1000mm x L 2000mm
    Application
    Metallurgy, electronics, medical treatment, chemical industry, petroleum, medicine, aerospace, etc.

    Titanium plate thickness tolerance:


    Thickness (mm)
    Thickness tolerance (mm)
    (3.71 to 4.76), excl
    0.36
    3.33 to 3.68
    0.31
    2.92 to 3.30
    0.25
    2.51 to 2.90
    0.23
    2.13 to 2.49
    0.20
    1.85 to 2.11
    0.18
    1.50 to 1.83
    0.15
    1.04 to 1.47
    0.13
    0.69 to 1.02
    0.10
    0.43 to 0.66
    0.08
    0.20 to 0.41
    0.05
    0.15 to 0.18
    0.04
    0.13
    0.03

    Characteristics of titanium plate:


    1. The surface oxide film of titanium sheet is equivalent to a good long-lasting wear-resistant separator. The use of titanium plate saves separator, makes the plate easy to peel, and eliminates the process of pre-treatment of the seed plate. The titanium seed plate is half lighter than the copper seed plate.


    2. The service life of the titanium seed plate is more than 3 times that of the copper seed plate, which can reach 10 to 20 years according to the operating conditions


    3. The electrolytic copper made from titanium seed plate has dense crystal structure, smooth surface and excellent quality.


    4. Since the titanium seed sheet does not need to apply a separator, it can avoid the contamination of the copper electrolyte.


    5. Increasing production capacity reduces the production cost of electrolytic copper, thus achieving better economic benefits.
